NEW
|
Brand name
|
Arditi Lighting |
|
Colour
|
white |
|
Dimensions
|
L56 W35 H22 mm |
|
Voltage
|
220-240 |
|
IP rating
|
20 |
|
Warranty (month)
|
24 |

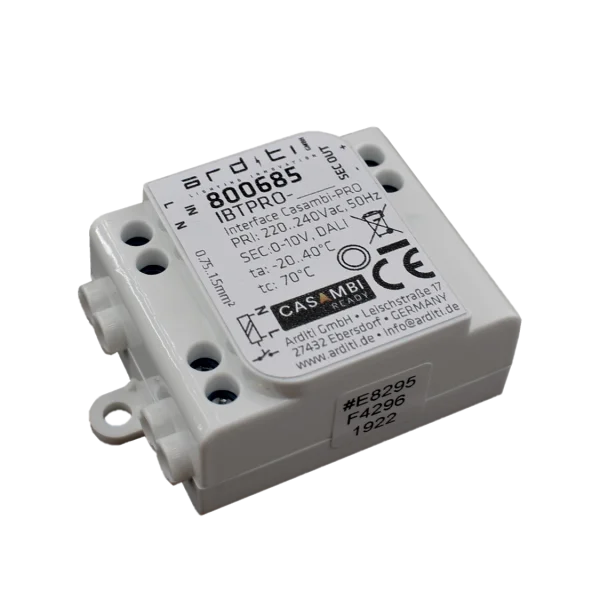

Interface for convenient operation with smart devices for controlling LED power supplies with DALI or 0-10 V signal input
Configurable and versatile with the CASAMBI app
Gateway is not required, but setup is possible
Sends DALI broadcast (1 Ch), to DALI address 0..3 (multi-channel) and 0-10 V on SEC OUT
Configuring the other interface types (DALI: TW, RGB, RGB+W, 1..4 Ch, 0-10 V) possible before coupling to the network: Change profile
Use of the switched mains output depending on the selected profile. The use of the switched mains output is only permitted with relays!
At 0-10 V: Complete shutdown via relay
Integrated antenna (drawing: gray area, do not cover with metal housing)
In built-in housing or with independent housing with terminal cover (protection class: 2)
Input
Voltage range: 220-240 VAC
Frequency: 50 Hz
Max. mains current: 0,6 A
Mains Output
Output relay: SSR on phase line
Voltage range: 220-240 VAC
Frequency: 50 HZ
**Risk of fire. Mains output is only allowed to connect to external relay. It must not be connected to LED driver mains input.
0-10 V Output
Voltage range: 0-10 VDC
Maximum number of drivers connected: 1 pc
DALI Output
Voltage range: 9-12 VDC
Configurable and versatile with the CASAMBI app
Gateway is not required, but setup is possible
Sends DALI broadcast (1 Ch), to DALI address 0..3 (multi-channel) and 0-10 V on SEC OUT
Configuring the other interface types (DALI: TW, RGB, RGB+W, 1..4 Ch, 0-10 V) possible before coupling to the network: Change profile
Use of the switched mains output depending on the selected profile. The use of the switched mains output is only permitted with relays!
At 0-10 V: Complete shutdown via relay
Integrated antenna (drawing: gray area, do not cover with metal housing)
In built-in housing or with independent housing with terminal cover (protection class: 2)
Input
Voltage range: 220-240 VAC
Frequency: 50 Hz
Max. mains current: 0,6 A
Mains Output
Output relay: SSR on phase line
Voltage range: 220-240 VAC
Frequency: 50 HZ
**Risk of fire. Mains output is only allowed to connect to external relay. It must not be connected to LED driver mains input.
0-10 V Output
Voltage range: 0-10 VDC
Maximum number of drivers connected: 1 pc
DALI Output
Voltage range: 9-12 VDC
